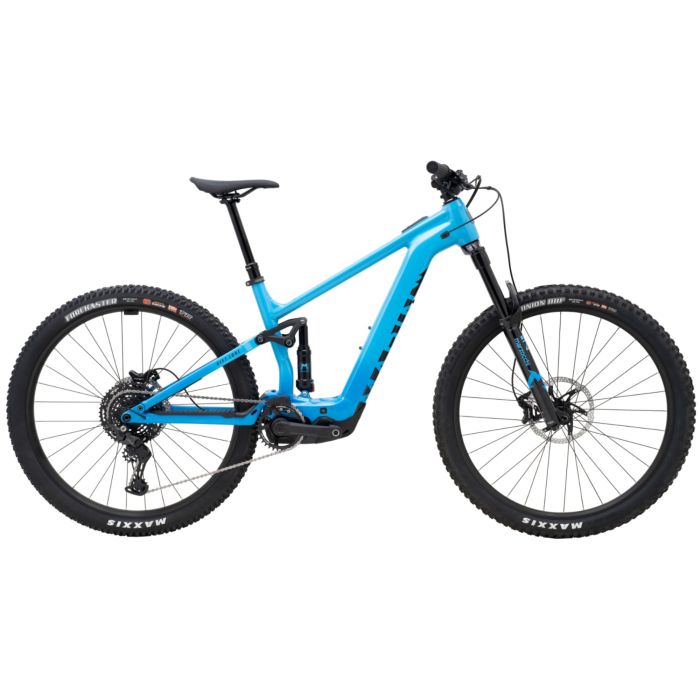

Marin Rift Zone EL1 Full Suspension e-Bike - 2025
- Bosch Performance Line SX system
- Marzocchi Bomber suspension
- TRP Slate EVO 4-piston disc brakes
Take on every trail with confidence. The Marin Rift Zone EL1 features Bosch’s Performance Line SX motor for seamless power delivery and a lightweight design. With air-sprung suspension and a 400Wh battery, it’s built for playful rides without the bulk of traditional eMTBs.
Key Features and Benefits:
- Bosch Performance Line SX Motor: Delivers 55Nm of torque for natural, efficient power. Enjoy precise assistance that feels intuitive on every ride.
- 400Wh Bosch Compact Tube Battery: Lightweight and integrated for optimal balance. Ride up to 55 miles on a charge, ensuring reliable performance.
- Marzocchi Bomber Z1 Suspension: Provides 150mm of front travel for tackling tough trails. Keeps you stable and in control, even on rough terrain.
- Marzocchi Bomber Air Rear Suspension: Custom-tuned 140mm rear travel absorbs impacts. Enjoy smoother rides and enhanced comfort on any trail.
- Shimano CUES 10-Speed Drivetrain: Offers smooth and precise shifting. Shift effortlessly, ensuring momentum on varied terrain.
- TRP Slate EVO 4-Piston Brakes: Powerful hydraulic brakes with 203mm rotors. Achieve consistent stopping power and safety in all conditions.
- Tubeless-Ready Maxxis Tyres: MaxxGrip front and MaxxTerra rear compounds provide exceptional grip. Conquer technical trails with confidence.
- Integrated Bosch eBike Flow App: Enables custom assist settings and real-time ride tracking. Stay connected and fine-tune your eMTB experience.
Designed for riders seeking lightweight agility, the Rift Zone EL1 delivers unmatched handling and precision. Its intelligent motor and suspension system offer seamless support on climbs and descents, ensuring a ride that's as efficient as it is enjoyable. Every detail is crafted for balance, comfort, and control.
Experience the perfect mix of power, precision, and playfulness with the Marin Rift Zone EL1. Built for riders who value performance without compromise, this eMTB redefines what’s possible on the trail.
Size - Rider height range
- S: 5'3" to 5'6"
- M: 5'6" to 5'10"
- L: 5'10" to 6'2"
- XL: 6'2" to 6'4"
| Brand | Marin Bikes |
| MPN | 737593002, 737593003 |
| Frame | All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
| Front Suspension | Marzocchi Bomber Z1 150mm Travel, 29, 110x15 Kabolt Thru Axle, 44mm Offset |
| Rear Suspension | Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount |
| Rim | Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
| Hub Rear | Shimano FHTC500, 148x12 Thru Axle, Microspline, 32H, Centerlock |
| Hub Front | Shimano HB-TC500, 110x10 Thru Axle, 32H, Centerlock |
| Spokes | 14g Black Stainless Steel |
| Tyres | Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+ |
| Derailleur Rear | Shimano CUES RD-U6000 GS, 10-Speed |
| Shift Lever | Shimano CUES SL-U6000-10R, 10-Speed |
| Crankset | e*thirteen e*spec Plus, 160mm Length, 34T |
| Motor | Bosch Performance Line SX, 600W, 55Nm torque |
| Chain | Shimano LG500 |
| Cassette | Shimano CS-LG300-10, 11-48T |
| Brakes Front | TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor |
| Brakes Rear | TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor |
| Brake Levers | TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Stem | Marin 3D Forged Alloy, 35mm |
| Grips | Marin Grizzly Lock On |
| Headset | FSA Custom, Adjustable HTA Design |
| Seatpost | TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Marin MTB Plastic |
| Battery | Bosch CompactTube 400Wh Internal |
| Display | Bosch BRC3100 Systems Controller |
| Switch | Bosch BRC3300 Bluetooth Remote 22.2mm Clamp |
| Extras | e*thirteen e*Spec Chainguide |
| Extras | Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger |
| Range, Charging Time | 15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions) |
